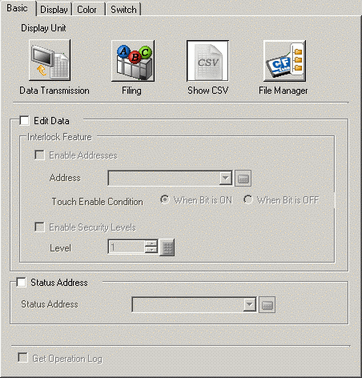

Edit Data
Select to edit data in the CSV Display. When selected, specify whether to use an address and security level when touching the cell of data you wish to edit.
Interlock
When [Edit Data] is designated, select whether to use the Interlock feature (allows data editing only when a condition is satisfied).
Use an Address
This function only allows input when a bit designated via [Interlock Address] is in a state that has been selected via [Touch Enable Condition]. Select the check box to use Interlock.
Address
Specify the bit address that represents an Enable condition for allowing cell touch. Touch is enabled (disabled) depending on the state of this address.
Touch Enable Condition
Select the enable condition for allowing cell touch
|
Touch Enable Condition |
Address Status |
Touch Enabled/Disabled |
|
When Bit is ON |
ON |
Touch enabled |
|
OFF |
Touch disabled | |
|
When Bit is OFF |
ON |
Touch disabled |
|
OFF |
Touch enabled |
Use Security Level
Select whether to use the security function for each part. When logged in with a Security Level higher than that set for the part, Touch Operation will be enabled.
Level
Set the Security Level of the part from 1 to 15.
Status Address
When editing or printing data, designate whether or not to confirm the status and error contents with the designated address.
Set the word address to store the current status of data editing and printing.
Error Codes (Reflected in the error status bits)
|
0 |
Completed Successfully |
Transfer completed successfully. |
|
1 |
Reserved |
- |
|
2 |
Reserved |
- |
|
3 |
Reserved |
- |
|
4 |
No CF Card or USB Storage |
The CF Card/USB storage is not inserted in the display unit, or the CF Card cover is not closed. |
|
5 |
Read Error |
Reading data from CF Card/USB storage failed. |
|
6 |
Write Error |
Writing data to the CF Card/USB storage device failed, possibly due to insufficient disk space. |
|
7 |
CF Card Error/USB Storage Error |
The CF Card/USB storage device is invalid, unformatted, or the media inserted is not a CF Card/USB storage device. |
|
8 |
Reserved |
- |
Edit Data Outputting Bit
This bit is turned ON when you press the "ENT" key on the CSV data editing screen. It remains ON while the CSV data is read to the CF Card/USB storage. While the edited data is output, other cell data cannot be printed or edited.
Printing Bit
This bit is turned ON. While printing, the data cannot be edited or printed.
Get Operation Log
Specifies whether to record the Operation Log. You can specify only when you select the [Edit Data] check box.
When [Enable Operation Log Function] is not selected in the common settings [Operation Log Settings], the message "Unable to include in operation log of individual parts" will appear. Select [Enable Operation Log Function] to enable the operation log settings.
