Transfer recipes between the backup SRAM of the display unit and device/PLC by turning ON the address used to control transfer.
Transfer from Backup SRAM to Device/PLC
Designate the file no./block no. to transfer and turn ON the control address bit 0. The block data or recipe is written to the device/PLC.

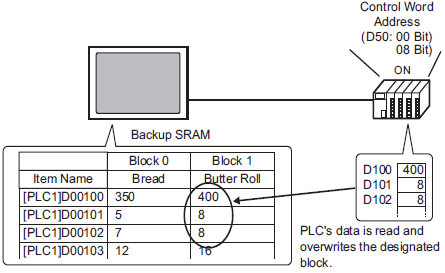

Transfer from Device/PLC to Backup SRAM
Designate the recipe to transfer and turn ON the control address bit 0 and bit 8. Data from the device/PLC is saved to backup SRAM and overwrites the designated recipe.
When you transfer from device/PLC to Backup SRAM, you cannot save as a new recipe. If you do not want to overwrite existing data, create an empty recipe in advance.
