25.3 CSV Data Flow

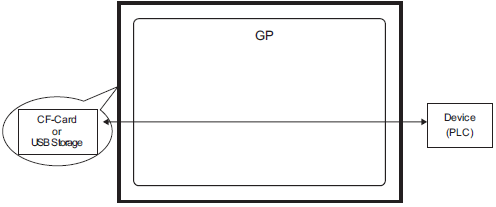

You can transfer CSV data from the CF Card or USB storage device and the device/PLC.

There are two methods for transferring CSV data: control the transfer from the device/PLC (Automatic Transfer), or control the transfer by touching the screen of a display unit (Manual Transfer).

Transfer Methods

Automatic transfer

Set the control address. Each time the bit is turned ON by the device, the data is transferred. The transfer action can be set as Condition Action or Address Action.

Condition Action

Transfer according to a previously set condition.

  • By using the Condition Name Search feature, only data that corresponds with the designated condition name is transferred.

Address Action

The address is set at the time of transfer. The destination address for each file to be transferred can be changed.

Manual transfer

Place a Special Data Display [Data Transmission] on the screen, select the file to transfer, and touch the transfer switch. Data is then transferred.
