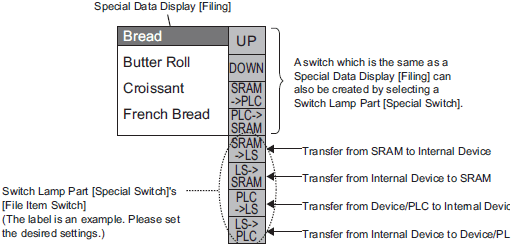

When a Special Data Display [Filing] is set with [Via Internal Device], you can use a Switch Lamp Part [Special Switch] and point to [File Item Switch] to transfer [SRAM -> Internal Device], [Internal Device], [Device -> Internal Device], and [Internal Device -> SRAM].
A Switch to operate the transfer to and from the internal device can only be created with a Switch Lamp [Special Switch].

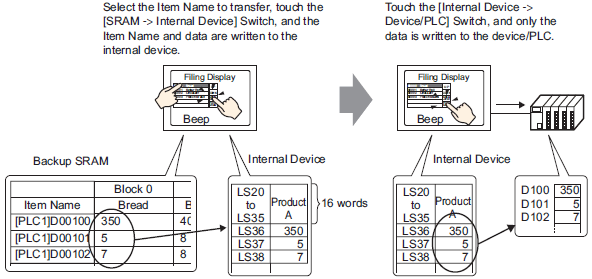

For example, when transferring from Backup SRAM to Internal Device (Start Address: LS20) to Device/PLC
(Data length: 16bit)

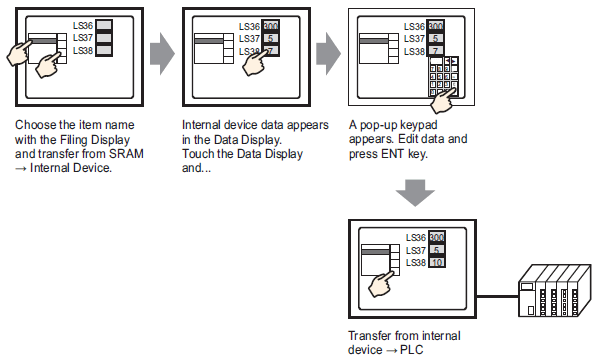

Data stored in the internal device can display as required on the screen of a display unit in a Data Display [Numeric Display]. Use this when you want to want to make small adjustments to the data on the screen of a display unit before transferring it to the device/PLC.

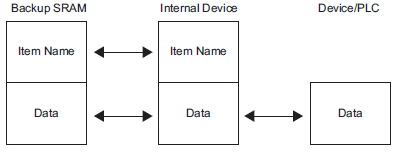

Structure of Filing Data Stored in the Internal Device
When transferring data from Backup SRAM to the internal device, the 16 consecutive words after the designated [Storage Start Address] store the item names, and data are stored after that.
The item name's text is stored according to the Text Data Mode settings.*1
For example, when the data length is 16 bits
When data is 32 bit, the used data portion is Number of Data Items x two words.
When transferring data from the internal device to the device/PLC, only data stored in the internal device are written to designated addresses in the device/PLC.
If [Send Item Names] is set when creating data, you can also transfer item names to the device/PLC.
25.17.2 Transferring Item Name and Block Number
*1 Text Data Mode settings are configured in the System Settings [Device/PLC].
