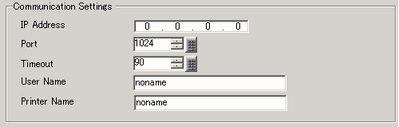

34.6.2.5 [Communication Settings] Port: Ethernet

IP Address

Configure the print server IP address.

Port

Configure the print server port number from 0 to 65535.

Time out

Set the output time out from 0 to 300 milliseconds.

User Name

Enter the name of the user who requests a printing job only if the [Connection Method] is [LPR]. The name specified here displays in the owner field on the queue display. (For example, "Guest")

Printer Name

Set the shared name of the printer server only if the [Connection Method] is [LPR]. (For example, "EPSONStyC61")

Printer URI

This item displays only if the [Connection Method] is [IPP]. Set part of the printer's network name. (For example, "/printers/StyC61/.printer")
