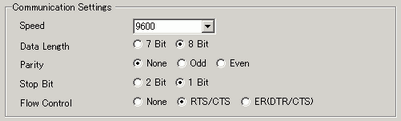

Communication Speed
Select a communication speed to the printer from [2400], [4800], [9600], [19200], [38400], [57600] or [115200].
Data Length
Choose the communication data length to the printer from [7 Bit] or [8 Bit].
Parity
Select the communication parity bit to the printer from [None], [Odd], or [Even].
Stop Bit
Choose the communication stop bit length to the printer from [2 Bit] or [1 Bit].
Flow Control
Select the communication control method to the printer from [None], [RTS/CTS Control], or [ER (DTR/CTS) Control].
Confirm all settings are compatible with the selected printer.
