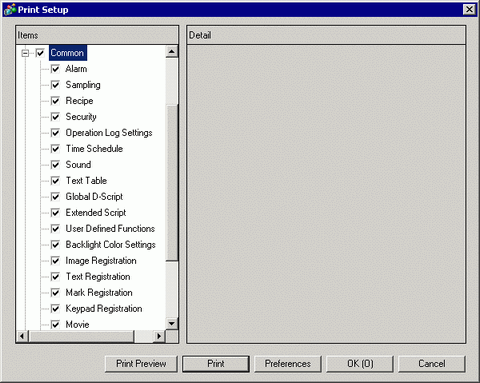

34.6.1.7 Common

Select all the items you want to print in the [Common] settings.

Alarm

Check the box for all the settings you want to print from [Common], [Alarm History], [Banner], and [Summary].

Sampling/Recipe

Print Contents

Select the print contents from [Summary] or [Detail].

For example, Sampling

Prints a summary list of settings for each group.

Prints the settings for all the items in each group.

Global D-Script/User Defined Function

Print Contents

Select the print contents from [List] or [Detail].

For example, Global D-Script

Prints a list of each [ID], [Comment], [Triggered Condition], and [Debug Function].

Prints the settings for all the items of each ID.



Image Registration

Print Method

Select the Print Method.

Prints multiple [Image] screens in reduced images.

Prints a list of each [Image] screen [Number] and [Comment].

Thumbnail Size

For [Thumbnail] in [Print Method], select the size from [Large], [Medium] or [Small].

Prints 6 reduced screen images per A4 sheet.

Prints 12 reduced screen images per A4 sheet.

Prints 20 reduced screen images per A4 sheet.

Specify Range

For [Thumbnail] in [Print Method], select the Print Range from [All] or [Specify Range]. For [Specify Range], specify the Range with image numbers in [Start] and [End].



Text Registration

Print Contents

Select the print contents from [List] or [Detail].

Prints a list of each text [Number], [Comment], [Language], [Maximum Chars], [Maximum Rows], etc.

Prints the input contents of each text.

Specify Range

For [Detail] in [Print Contents], select the Print Range from [All] or [Specify Range]. For [Specify Range], specify the Range with text numbers in [Start] and [End].

Table to Print

Select whether to print text with the text table specified in [Preferences] in the [Print] dialog box or with all the text tables.



Mark Registration

Print Method

Select the Print Method.

Prints multiple [Mark] screens in reduced images.

Prints a list of each [Mark] screen [Number] and [Comment].



Specify Range

For [Thumbnail] in [Print Method], select the Print Range from [All] or [Specify Range]. For [Specify Range], specify the Range with mark numbers in [Start] and [End].



Keypad

Print Contents

Select the print contents from [Summary] or [Detail].

Summary

For [Summary] in [Print Contents], select the following options.

Print Method

Select the Print Method.

  • Thumbnail

Prints multiple [Keypad] screens in reduced images.

  • List

Prints a list of each [Keypad] screen [Number] and [Comment].

Thumbnail Size

For [Thumbnail] in [Print Method], select the size from [Large], [Medium] or [Small].

  • Large

Prints 6 reduced screen images per A4 sheet.

  • Medium

Prints 12 reduced screen images per A4 sheet.

  • Small

Prints 20 reduced screen images per A4 sheet.

Introduction

For [Details] in [Print Contents], select the following options.

Screen Hard Copy

Select to print a [Keypad] screen.

Parts List

Check the box to print a list of parts with keypad settings.

Specify Range

Select the Print Range from [All] or [Specify Range]. For [Specify Range], specify the Range in [Start] and [End].

  • This can only be specified when the print range is [Screen Hard Copy] or [Parts List] or when both are set.

Movie

Select the [Movie File] or [Play List] with the list you want to print.

Image Unit Window

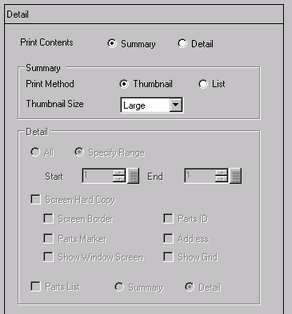

Print Contents

Select the print contents from [Summary] or [Detail].

Summary

For [Summary] in [Print Contents], select the following options.

Print Method

Select the Print Method.

  • Thumbnail

Prints multiple [Image Unit Window] screens in reduced images.

  • List

Prints a list of each [Image Unit Window] screen [Number] and [Comment].

Thumbnail Size

For [Thumbnail] in [Print Method], select the size from [Large], [Medium] or [Small].

  • Large

Prints 6 reduced screen images per A4 sheet.

  • Medium

Prints 12 reduced screen images per A4 sheet.

  • Small

Prints 20 reduced screen images per A4 sheet.

Introduction

For [Details] in [Print Contents], select the following options.

All/Specify Range

Specify whether to print all [Image Unit Window] screens or print by specifying the screen number in [Start] and [End].

Screen Hard Copy

[Screen Border], [Parts ID], [Parts Marker], [Address], [Show Window Screen], and [Show Grid] settings are displayed where you can define whether to print out a hardcopy of the screen.

Parts List

Specify whether to print the list of parts specified in the Image Unit Window in [Summary] or [Details].

Global Functions

Parts List

Specify whether to print the list of parts specified in the global function in [Summary] or [Details].

Comment List

Specify all the [Symbol], [Variable], [System Variables], and [Rung] that you wish to print.
