References to transfer operations include all transfer operations, such as CF Card Connection, Memory Loader, and transferring between the computer and display unit.
When using a GP-3300 Series model before Rev*-4, you cannot use some of the features in GP-Pro EX 2.2 or later.
As a result, if you transfer to a display unit with the [Revision] set to [Rev*-4 Greater Than Or Equal To], it will not run properly on the display unit. Furthermore, before transferring, data on the display unit is deleted.

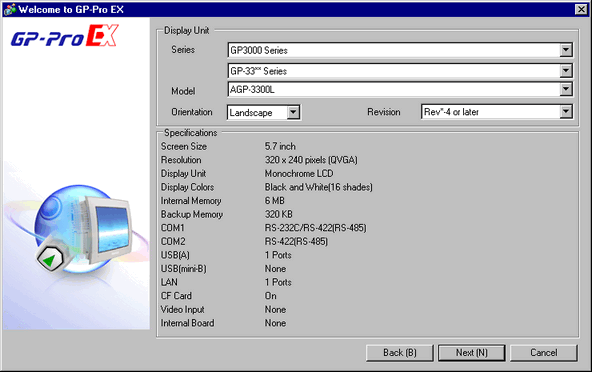

When using a model before Rev*-4, please make sure you set [Revision] to [Rev*-4 Less Than].
Or, when designing the screen do not use any features that are not supported by models before Rev*-4.
References to transfer operations include all transfer operations, such as CF Card Connection, Memory Loader, and transferring between the computer and display unit.
Models
AGP-3300L/AGP-3300L-FN1M/AGP-3300L-D81/AGP-3300L-CA1M
AGP-3300S/AGP-3300S-D81/AGP-3300S-CA1M
AGP-3300T/AGP-3300T-FN1M/AGP-3300T-D81/AGP-3300T-CA1M
AGP-3301L
AGP-3301S
Features You Cannot Use with GP-3300 Series Rev*-4
Animation
XY Scatter Graph
Bulletin Message
Ethernet Multilink
Selector List Parts
File Manager Display - Sort Feature /default path specification
File Manager Display - Expand Status Addresses
File Manager - FTP client - File copy
Alarm part (Historical Display) - Indirect specification of block addresses
Sampling Alarms - Indirect specification of upper and lower limits
Changing passwords online
Bitmap Font
Standard Font
Image Font (Character Registration)
Alarm Message Multiple Line Display
Synchronize Text Display Language with Text Table
Append Value to Operation Log
Printing - Print to EPSON ESC/PR compatible printers
Checking the Revision Number
You can check the display unit's revision number by viewing the label. The following example indicates Rev 3, as position "3" is marked with an asterisk "*".

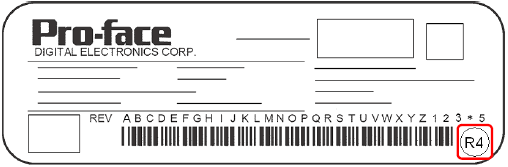

For Rev 4 or later, the display unit label is marked "R4".
