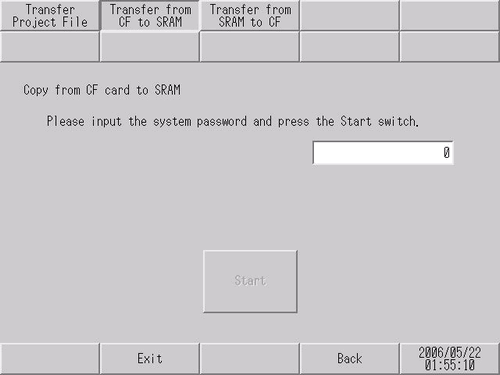

M.15.7.2 Transfer - Transfer from CF to SRAM

You can transfer the SRAM backup data stored in the CF card (the data transferred with [Transfer from SRAM to CF]) to the internal memory (SRAM).

Please input the system password and press the Start switch.

Touch the system password entry field and enter the system password. If you have not specified a system password, enter "1101" (standard password).

Start

Start the transfer of the backup SRAM data stored in the CF card to the display unit.
