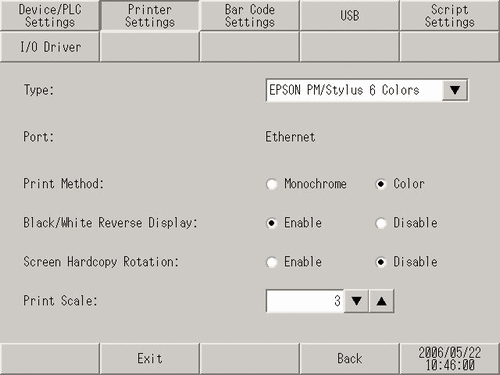

M.15.3.2 Peripheral Settings - Printer Settings

Set the model of the printer connected to the display unit and the print method.

Type

[Do Not Use], [NEC PR201], [EPSON ESC/P High Speed], [EPSON ESC/P High Quality], [HP Laser Jet], [EPSON PM/Stylus 6 Colors], [EPSON Stylus 4 Colors] and [Text ASCII] are the printer options.

When using [Text ASCII], the text shape may be different because the print method is different.

Port

The port to which the printer is connected is displayed.

Print Method

Select the print method. Select either [Monochrome] or [Color].

For a monochrome display unit, the hardcopy will be monochrome even though [Print Method] is set to [Color].

Black/White Reverse

Select whether or not to print with black and white reversed.

Screen Hardcopy Rotation

Select the orientation for the screen hard copy. Select either [Horizontal] or [Vertical].

Print Scale

When using [EPSON PM/Stylus 6 Colors] or [EPSON Stylus 4 Colors] printers, set the print ratio from 1 to 4.
