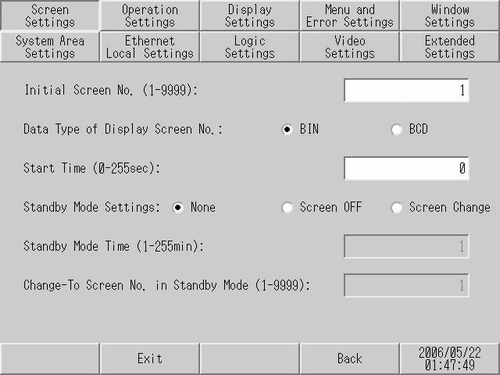

Set up the initial screen displayed after powering up, and the standby mode settings.
Set the number of the screen that displays at startup.
11.3 Choosing the Screen to Display when the Display Unit Turns on
Set the screen number from 1 to 9999 when the [Data Type of Display Screen No] is [Bin], and from 1 to 7999 for [BCD].
Data Type of Display Screen No.
Select the data type of the screen number for change screen operations. Select either [Bin] or [BCD].
Start Time
Set the time it takes for the display to start up after the power turns ON, from 0 to 255 seconds.
Standby Mode Settings
Select the standby mode from [None], [Screen OFF], or [Screen Change].
[None]
The screen does not change to standby mode.
[Screen OFF]
[Standby Mode Time]. When the defined time elapses with no screen touch, screen change, alarm message display, or other function, the screen is cleared.
[Screen Change]
[Standby Mode Time]. When the defined time elapses with no screen touch, screen change, alarm message display, or other function, changes to the screen defined in the [Change-To Screen No in Standby Mode] field.
Standby Mode Time
To protect the display, set the time from 1 to 255 minutes after which the screen is cleared. Automatically clears the screen display or changes to the set screen when the set time passes without any display operations.
Change-To Screen No. in Standby Mode
When the [Standby Mode Settings] is [Screen Change], set the screen number to change to after the [Standby Mode Time] elapses.
Set the screen number from 1 to 9999 when the [Data Type of Display Screen No] is [Bin], and from 1 to 7999 for [BCD].
