Set up the logic program.
Logic Program
[On] enables set up for all the following items. [Off] prevents set up.
Fixed Scan Time
Specify the logic function execution time. Setting range: 10 to 2000 ms
CPU Scan Percentage
Set the ratio of the execution time of the logic function to a value within the range of 10% to 50%.
WDT(100-3000)
Set the watch dog timer to a value between 100 and 3,000 ms.
Run at Start Up
Select the logic operation when the display unit is turned ON, either [RUN] or [STOP].

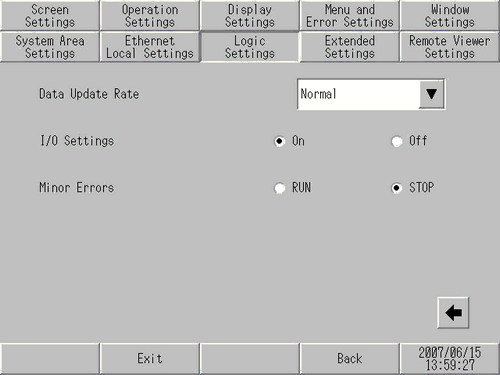

Data Update Rate
Select the speed for updating device addresses of connected devices and internal devices assigned to the logic program, [Fastest], [Normal], or [Slowest].
I/O Settings
Select [On] to use I/O operation. To [Stop] I/O operation, select [Off].
Minor Errors
Select the logic operation when a minor error arises from either [RUN] or [STOP].
