This function can be set up with the IPC series only.
For details about the setting screen, refer to the setting guide.
M.22.1.1 IPC Settings - Restarting IPC
To restart the IPC unit, perform the following setting procedure.
This function can be set up with the IPC series only.
For details about the setting screen, refer to the setting guide.M.22.1.1 IPC Settings - Restarting IPC
If you start WinGP by selecting [Programs] - [Pro-face] - [WinGP] - [WinGP] - [WinGP] from the Start menu, the following screen appears. Touch or click the upper right then the bottom left corners, or the upper left and bottom right corners of the panel (within a 40 pixel area) in 0.5 seconds.
After the system menu appears, select [Offline].
Alternately, you can go to offline mode by selecting [Offline] in the menu displayed by right-clicking on the above screen.
After the offline mode screen is displayed, select [IPC Settings] on the item changeover switch.
[IPC Settings] screen opens. Select [Restart IPC].

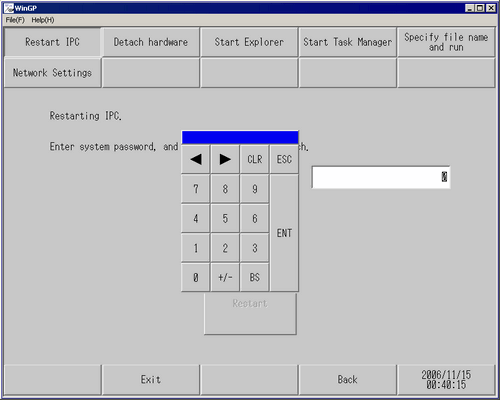

[Restart IPC] screen opens. Touch the input field and type "1101" (when the [System Password] is [Disable]) or type the system password.
[Start]: Touch the button.
[Is that really alright] confirmation message appears. Select [Yes].
The IPC unit will restart.
