M.6.2 Initializing the CF card

Deletes all data in the CF Card installed in the display unit.

  1. Enter offline mode and touch [Initialization Menu] in the item change over buttons.

  2. [Initialization Menu] screen opens. Touch [Initialize CF Card].

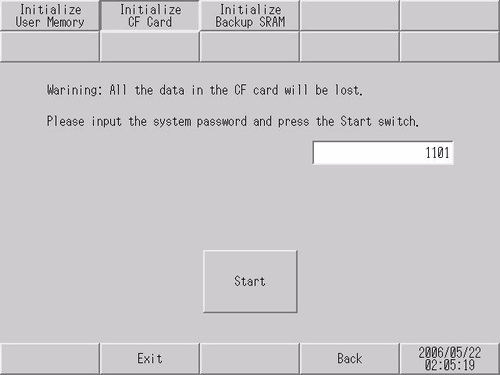

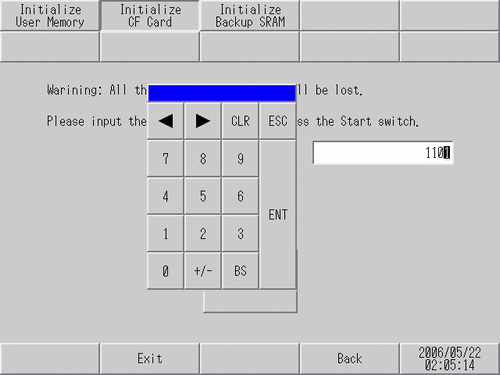

  3. [Initialize CF Card] screen opens. Touch the input field and type "1101" (when the [System Password] is [Disable]) or type the system password.

  4. [Start]: Touch the button.

  5. [Is that really alright?] confirmation message appears. Select [Yes].

  6. When a message indicating the completion of the initialization appears, touch [Close].
