M.10.2 Adjusting the scan time by setting the execution time of the logic functions and the display function execution time (Fixed Scan Time)

You can execute logic programs at specified fixed cycles.

1. Go to offline mode and touch [Main Unit] on the item changeover switch.

2. [Main Unit Settings] screen opens. Touch [Logic].

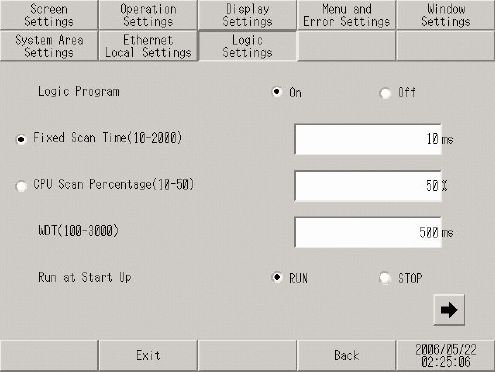

3. [Logic] screen opens. Touch [Fixed Scan Time].

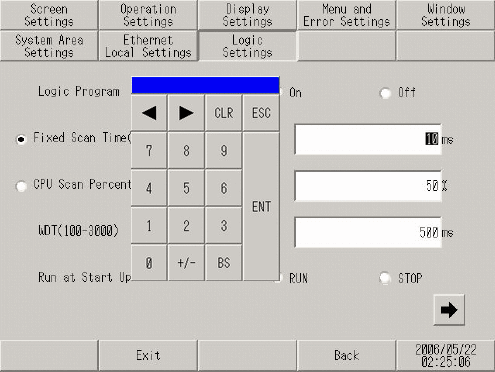

4. [Fixed Scan Time] field. Touch this area and use the numeric touch keys to enter the time for each scan of the logic program.


5. [Exit] displays the [Exit] dialog box. Touch [Save changes and exit].

6. [Save File] dialog box appears and then the display unit restarts. The setting is complete.
