This section describes operations necessary for various settings.
Selecting a menu
Touch the menu item.
Entering numbers
After selecting a menu or touching an input field, you can enter numeric values.
Use the screen's numeric touch keypad to enter values.
Selecting setup conditions
After selecting a menu item and entering that area, touch the option you would like to setup.
When using GP-4100 series, to select an option touch inside the display area of the setup item.
After completing all settings (other than GP-4100 series)

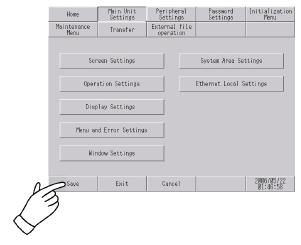

Touch [Save] at the bottom of the screen.
If you wish to cancel the settings, touch the [Cancel] button.
Touch [Save] to write the setup conditions to internal FEPROM.
When saving to the internal FEPROM, it may take some time to return to the main screen after touching the [Save] button. Do not touch the screen until it returns to the menu screen.
Do not turn off the display unit while changes to the setup are being saved. It may damage the internal FEPROM contents.
Touch the [Cancel] button to return changes to an item's setup to the state when it was last saved.
After completing all settings (GP-4100 series)
[Top]. Touch to return to the initial screen.
[Exit]. Touch the button.
When exiting offline mode and to save the settings, touch [Save changes and exit]. When exiting offline mode and to cancel changes to settings, touch [Lose changes and exit].
[Save changes and exit]. Touch to write the setup conditions to internal FEPROM.
Do not turn off the display unit while changes to an item's setup is being saved. It may damage the internal FEPROM contents.
If there are no changes in offline mode, the following screen will appear. Touch [Yes] to exit offline mode.
Return to the previous level
Touch the [Back] button.
For GP-4100 series, touch the [Back] button.
