30.1.1.1 Direct Registration on the I/O ScreenAllocate the address to the each I/O terminal after completing the settings for the I/O Driver and external unit models.
There are three ways to map addresses to I/O terminals: directly registering addresses on the I/O, mapping addresses in the Address Window, and mapping addresses in the logic program.
30.1.1.1 Direct Registration on the I/O Screen
30.1.1.2 Mapping by Drag and Drop to I/O Terminals from the Address Window
30.1.1.3 Mapping by Drag and Drop to I/O Terminals from the Logic Program
When [Register Variable] is [Address Format], after mapping addresses to I/O terminals, causing a change to the terminal structure (such as when changing the unit model or changing the terminal type) may cause mapped address I/O terminals to change position.

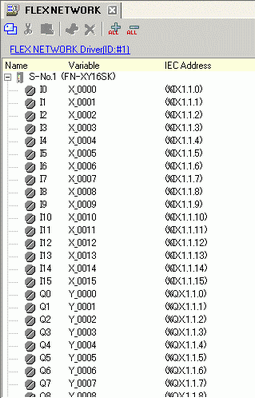

In the I/O screen, please check address allocations.
This section outlines the case when the [Register Variable] is [Variable Format].
When [Register Variable] is [Address Format], addresses starting with "X_", "Y_", "I_", or "Q_" are already mapped. You cannot change this setting.
