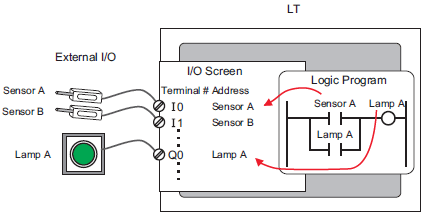

30.5.1 Mapping I/O (LT Series)

Terminal Structure

Different terminals are allocated for the standard I/O and for the special I/O (high-speed counter and PWM output and so on.).

• Terminal for Standard Input:

X8 to X11 (LT-3200 Series)
X8 to X15 (LT-3300 Series)

• Terminal for Standard Output:

Y4 to Y5 (LT-3200 Series)
Y4 to Y15 (LT-3300 Series)

• Common terminal for the standard I/O and special I/O:

X0 to X7, Y0 to Y3

LT-3200 Series

LT-3300 Series
