30.5.1.1 Setting the Standard I/O, High Speed Counter, PWM Output and Pulse Output

This section describes how to allocate the input terminals X0 to X7 and the output terminals Y0 to Y3. As shown below, divide these I/O terminals into four groups based on one channel (CH) consisting of two input terminals and one output terminal. Select the combination for each channel from those provided by GP-Pro EX.

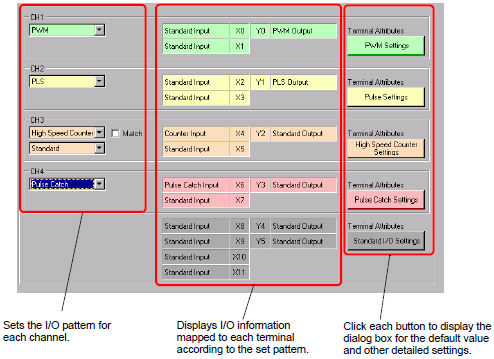

[GP-Pro EX I/O Driver Setting Screen]

Select [I/O Driver] in System Settings to display the following screen.

For example, for the LT-3200 Series
