This function shows the normal pulse output state and completion. The pulse output flag shows the output state under the CH special I/O state in the system variable (#L_ExIOSpCtrl). If the flag is ON, the output is ON. If the flag is off the output is OFF. Furthermore, if the completion flag of the setting pulse shot output is ON, the output has been completed. If the flag is OFF, the output has not been completed. The watch bit will differ, depending on the CH to which you allocate the pulse output.
After the defined pulse output completion flag changes from OFF to ON, the timing of the change is set as when the corresponding CH's special I/O control pulse output flag changes from ON to OFF (start to stop).

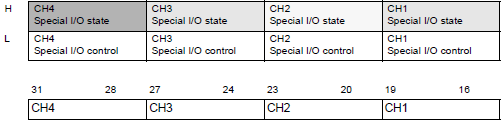

#L_ExIOSpCtrl
If the start bit of the CH (0 bit) is 1, the output is ON. If it is 0, the output is OFF.
Furthermore, if the 2nd bit is 1, the set pulse shot has been output successfully.
