Acceleration/Deceleration pulse output makes the output frequency - time curve to reach the set pulse shot less steep.

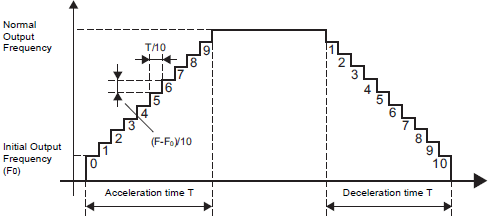

The output frequency in the pulse output increases from the initial output frequency (F0) to the normal output frequency (F) in the acceleration/deceleration time (T) gradually through 10 phases saving the same intervals. Then, it outputs the shot of the total pulse shot minus the pulse shot necessary for deceleration and decelerates through 10 phases as so in acceleration.
In addition to setting the output frequency (F) and the Output pulse count for the normal pulse output, set the initial output frequency (F0) and the acceleration/deceleration time (T).
The acceleration/deceleration pulse output starts on OFF and outputs one time at ON→OFF. The Output pulse count is updated every ON→OFF. When you forcibly stop the pulse output, the output stops no matter what state the pulse is in. Therefore, the pulse output generated during the forced stop might not be counted in some cases.
When you turn ON the request flag for the acceleration/deceleration pulse table from multiple CHs simultaneously, generally, the request from the CH with the smallest number is processed first. However, since the acceleration/deceleration table is created for the CH whose request is detected first, the table might be created in such order as 3→4→1→2, depending on the timing.
