This function shows the output and completion of the acceleration/deceleration pulse output. The enable flag and pulse output flag show the acceleration/deceleration pulse output state under the CH special I/O state in the system variable (#L_ExIOSpCtrl) . If the flags are ON, the output is ON. If the pulse output flag is OFF, the output is OFF.
Furthermore, if the completion flag of the setting pulse shot output is ON, the output has been completed. If the flag is OFF, the output has not been completed. The watch bit will differ, depending on the CH to which you allocate the pulse output.
Setup Process

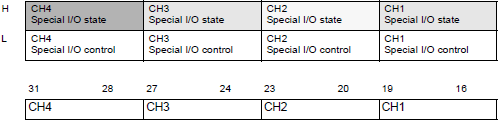

Regarding the details in [Special I/O State], the watch bit will differ, depending on the CH to which you allocate the pulse output, as shown below.
#L_ExIOSpCtrl
If the start bit of the CH (0 bit) is 1, the output is ON. If it is 0, the output is OFF.
Furthermore, if the 2nd bit is 1, the set pulse shot has been output successfully.
