When the project data is received after online editing while another GP-Pro EX is used for online editing, invalid data may be received; therefore, data receive will not be complete.
Restrictions on the connection of multiple PC with a display unit are as follows.
Limiting the monitoring while transferring the project by another PC
If another PC is transferring the project, GP-Pro EX notifies the user that the monitoring cannot be performed and does not carry out the process.
Limiting the online editing while if another PC is transferring/receiving the project
If another PC is transferring/receiving the project, GP-Pro EX notifies the user that the online editing cannot be performed and does not carry out the process.
Limiting the transfer of the project during monitoring/online editing by another PC
If another PC is monitoring/online editing, GP-Pro EX notifies the user that the transfer of the project cannot be performed and does not carry out the process.
Limiting the reception of the project during online editing by another PC
If another PC is online editing, GP-Pro EX notifies the user that the transfer of the project cannot be performed and does not carry out the process.

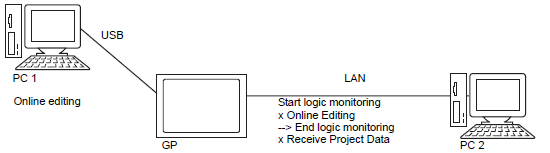

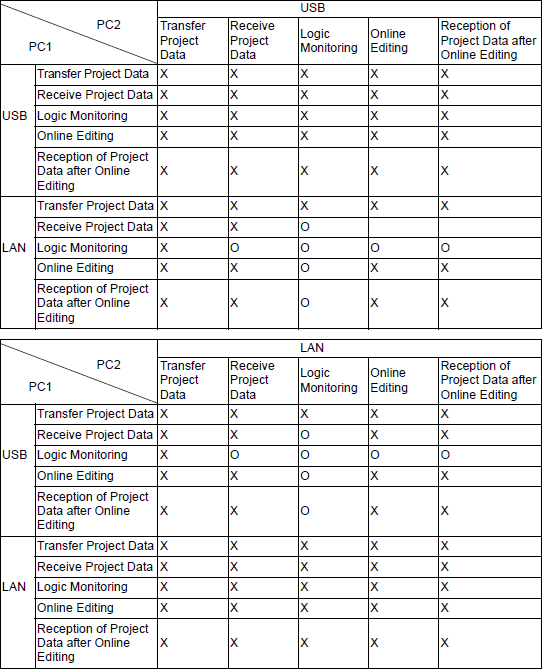

Restriction when the second PC (PC2) is operated while the first PC (PC1) is operated
O: Operable, X: Not operable
