If an overflow occurs as a result of the instruction, the system variable (bit) #L_CalcCarry turns on.
The instruction will not execute if the value in operand S1 or S2 (infinite or non-numeric value) cannot be recognized.
The error code (6706) is written to #L_CalcErrCode.
The result in D1 maintains the value from the previous successfully run instruction.
#L_Error turns on, and the error code (6706) is written to #L_CalcErrCode.
When the execution result is 0, the system variable #L_CalcZero turns ON.
When checking the result using system variables, make sure the check takes place after the instruction has been executed. When checking the state after multiple instructions have been executed, system variables will store the result only of the last processed instruction.
Program Example
SUB
Subtracts two constants from another and stores the result in the integer variable.

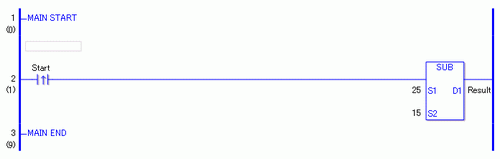

When the positive transition instruction turns ON, the SUB instruction will be executed. When the SUB instruction is executed, the result value of 10, obtained from 25 - 15 = 10, is stored in D1.
When using a normally open instruction, as long as the variable is ON, the SUB instruction is always executed.
SUBP

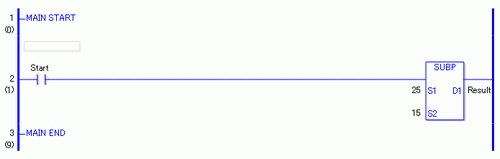

When the normally open instruction turns ON, the SUBP instruction will be executed. When the SUBP instruction is executed, the result value of 10, obtained from 25 - 15 = 10, is stored in D1.
Even when using a normally open instruction, the SUBP instruction executes only when it detects an upward transition.
Therefore, even when the normally open instruction is always ON, the SUBP instruction is executed only for one scan.
