When the execution result is 0, #L_CalcZero turns on.
If an overflow results from the rotation instruction, the overflowed bit is stored in #L_CalcCarry.
When the execution results in an error, the error information is stored in #L_Status.
When the execution results in an error, the error code is stored in #L_CalcErrCode.
When checking the result using system variables, make sure the check takes place after the instruction has been executed. When checking the state after multiple instructions have been executed, system variables will store the result only of the last processed instruction.
Program Example
RCL

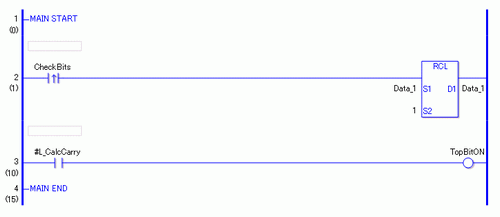

When a positive transition instruction turns ON, the RCL instruction is executed. When the RCL instruction is executed, the result from rotating 1 bit with carry over is stored in D1.

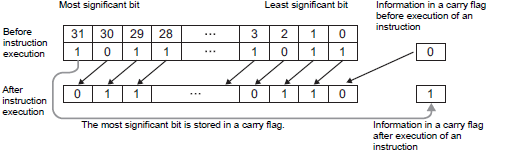

When 1 bit is shifted to the left with carry over, you can use #L_CalcCarry to check the value of the most significant bit before the rotate operation.
When using a normally open instruction, the RCL instruction is always executed as long as the normally open bit is ON.
RCLP
The RCLP and RCL instructions have different ways of detecting when to execute. In the RCLP instruction, Even when using a normally open instruction, the RCLP instruction executes only when it detects the upward transition. Even if the bit of the normally open instruction remains ON, the RCLP instruction is executed only for one scan.
