If a numeric value out of the setting range is input, an error will occur and the 6706 error code is set to #L_CalcErrCode. For checking error details, refer to the #L_CalcErrCode.
Program Example

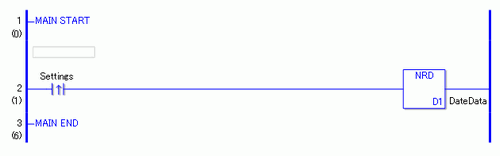

NRD
Stores the current date in the date variable.
When the positive transition instruction turns ON, the NRD instruction will execute. When the NRD instruction is executed, the current date is stored in the date variable in D1.

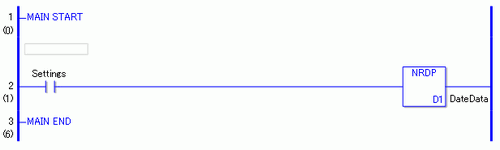

NRDP
When the normally open instruction turns ON, the NRDP instruction will be executed. When the NRDP instruction is executed, the current date is stored in the date variable in D1.
