31.9.2.3 Confirming Execution Results - JSET/JSETP

• If a numeric value out of the setting range is input, an error will occur and the 6706 error code is set to #L_CalcErrCode. For checking error details, refer to the #L_CalcErrCode.

• #L_CalcZero turns on when the value of D1 is 00:00:00.

Program Example

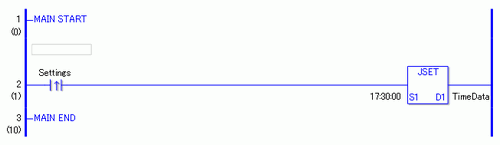

JSET

Stores the defined time in the time variable.

1. When the positive transition instruction turns ON, the JSET instruction will execute. When the JSET instruction is executed, the defined time 17:30:00 is stored in the time variable in D1.

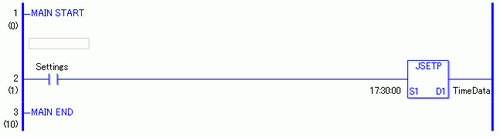

JSETP

1. When the normally open instruction turns ON, the JSETP instruction will execute. When the JSETP instruction executes, the defined time 17:30:00 is stored in the time variable in D1.
