When the execution result is 0, #L_CalcZero turns on.
When the execution results in an error, the error code is stored in #L_CalcErrCode.
When checking the result using system variables, make sure the check takes place after the instruction has been executed. When checking the state after multiple instructions have been executed, system variables will store the result only of the last processed instruction.
Program Example
EXP

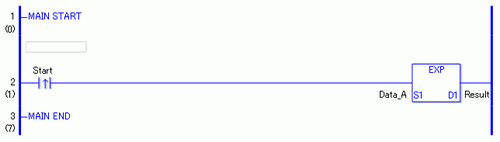

The EXP instruction is executed when the positive transition instruction turns ON. The EXP instruction calculates the exponent of Data_A and stores the result in D1.
When using a normally open instruction, the EXP instruction is always executed as long as the normally open instruction bit ON.
EXPP
The EXPP and EXP instructions differ in when they run. In EXPP instructions, even when using a normally open instruction, the EXPP instruction executes only when it detects the upward transition. Therefore, the EXPP instruction is executed only for one scan, even when the normally open instruction bit remains ON.
