31.10.4.4 Explanation of the DIV and DIVP Instructions

The DIV and DIVP instructions are division instructions. When a DIV instruction is executed, S1 will be divided by S2 and the result is stored in D1.

The DIV and DIVP instructions always pass power. When using the DIV and DIVP instructions, if the types of variables specified in operands S1, S2, and D1 are not the same, an error occurs. Designate the same variable type in all operands S1, S2, and D1.

Refer to the following for specifying a constant.

When operand D1 is an integer variable

When operand D1 is an integer variable and you want to input hexadecimal values in operands S1 and S2.

When 0x (zero and lower case "x") is input, the following values become hexadecimal values.

When operand D1 is a float variable

When 0f (zero and lower case "f") is input, the following values are interpreted as float values.

When operand D1 is a real variable

When 0r (zero and lower case "r") is input, the following values are interpreted as real values.

When Dividing Data in a Specified Array (Integer Variable Array)

Specify the array using Data [0] or Data [N] (N indicates an integer variable).

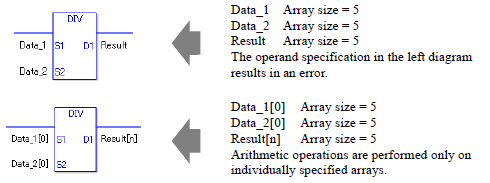

When operands S1, S2, and D1 specify the entire array, an error will occur even if the specified variables are the same type.
