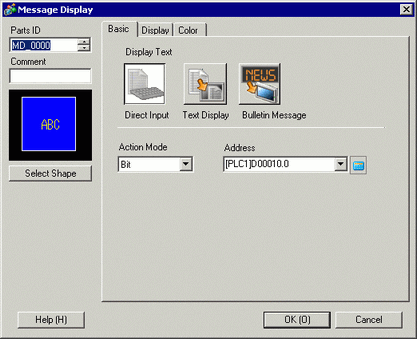

Parts ID
Parts are automatically assigned an ID number.
Text Display Parts ID: DD_ **** (4 digits)
The letter portion is fixed. You can change the number portion to within the range of 0000 and 9999.
Comment
The comment for each Part can be up to 20 characters.
Part Shape
Displays the shape and status of the Part selected in [Select Shape].
Select Shape
Open the Select Shape dialog box to choose the Part shape.
Message Display Type
Select the Text Display part type.
Direct Input
The displayed message changes according to the bit address ON/OFF state or the word address value.
17.10.1 Direct Input Settings Guide
Text Display
Text registered to a text screen is changed and displayed.17.10.2 Text Display Settings Guide
Bulletin Message
If a Bulletin Message Display is placed on the window screen, the Bulletin Message is displayed over any display on the display unit's screen.17.10.3.1 Bulletin Message - Basic
No Shape
When [Text Display] is selected, select whether or not the part will be transparent with no shape.
When Visibility animation causes the Message Display to show or hide, its operations may differ.. For more details on Visibility Animation, refer to the following.
