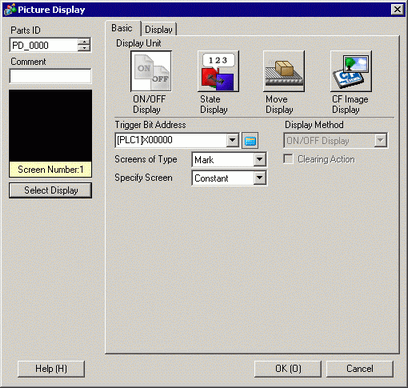

Trigger Bit Address
Specify the Bit Address to monitor (monitoring bit).
Screens of Type
Select the screen type to display.
Mark
Displays a picture registered in the mark screen.
Specify Screen
Select the designation method of a screen to display from [Constant] or [Address].
Constant
A Mark Screen to display is fixed. Click [Select Display] and specify the screen you want to display.
Address
A mark screen to display is variable. Change and display screens by storing the screen numbers in the Word Address.
Screen Number Specification Address
Set the word address where the screen number to display is stored.
Data Type
Choose the data type of the display screen address from [Bin] or [BCD].
Offset
Set the offset value from 0 to 8999. A Mark screen displays. It is defined by the value in the display screen number address, plus the offset.
