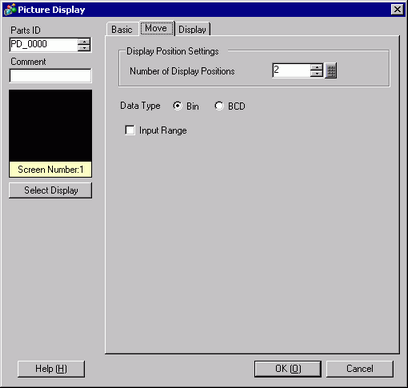

Display Position Settings
Defines the display coordinates.
Number of Display Positions
Set the number of display positions for placement.
Data Type
Select the data type of the control word address to store the display position from "Bin" or "BCD".
Input Range
Set the control word address' data range. Moves and displays data in percentage according to the settings.
Data is fixed in Bin format. The setting range depends on the [Input Sign] settings.
Input Range Min/Max List
|
Sign +/- |
Min |
Max |
|
None |
0 to 65534 |
1 to 65535 |
|
2's Complement |
-32768 to 32766 |
-32767 to 32767 |
|
MSB Sign |
-32767 to 32766 |
-32766 to 32767 |
If the input range is not set, a screen displays at the data position stored in the control word address.
Bit Length
Set the valid bit length of the data to store in the word address.
Sign +/-
Select the input sign from [None], [2's Complement], or [MSB Sign].
Min
Set the input range minimum value.
Max
Set the input range maximum value.
