Move Method
Select the move method from [Area Migration] or [Point-to-Point Move].
Area Migration
Moves and displays a library freely in the specified area.

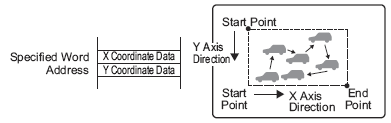

Area Migration
A screen to be called moves in an area. Two words are used for data.
Point-to-Point Move
Moves and displays a screen on the line between the two specified points.

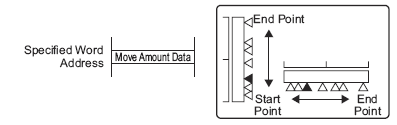

Point-to-Point Move
A screen to be called moves linearly between two points. One word is used for data.
Data Type
Select the data type of the word address to store the move amount from [Bin] or [BCD].
Sign +/-
Select if you want to display negative data. This can be set only when the data type is [Bin].
Move
Set the Move Amount and the Range.
Move Amount
Set the word address which stores the move amount. Moves and displays another screen pictures by the data changes in the set word address.
For area migration, set two word addresses to store the move amount in the X Coordinate/Y Coordinate.
Range
Set the move range.

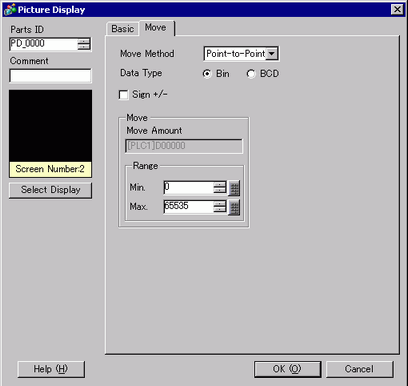

For example, for point-to-point move with the maximum value "100" and the minimum value "0"
For [Area Migration], set the data range of a word address to store each move amount on X Coordinate/Y Coordinate.
Range
Min
Set the range minimum value. The setting range depends on the [Data Type] and [Sign +/-] settings.
|
Data Type |
Sign +/- |
Input Range |
|
Bin |
None |
0 to 65534 |
|
Bin |
ON |
-32768 to 32766 |
|
BCD |
— |
0 to 9998 |
Max
Set the range maximum value. The setting range depends on the [Data Type] and [Sign +/-] settings.
|
Data Type |
Sign +/- |
Input Range |
|
Bin |
None |
1 to 65535 |
|
Bin |
ON |
-32767 to 32767 |
|
BCD |
— |
1 to 9999 |
