9.1 Settings Menu

Changing a Picture with Bit ON/OFF

Overview 9.2 Changing a Picture with Bit ON/OFF

Steps 9.2.1 Procedure - Changing a Picture with Bit ON/OFF

Displays or hides a picture corresponding to the state of a bit.



Displaying Alternate Pictures

Overview 9.3 Displaying Alternate Pictures

Steps 9.3.1 Procedure - Displaying Alternating Pictures

Selects a picture to display according to the contents of a word address.

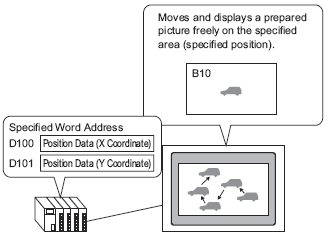

Moving a Picture

Overview 9.4 Moving a Picture

Steps 9.4.1 Procedure - Moving a Picture

Displays a picture at the position given in the word addresses.
