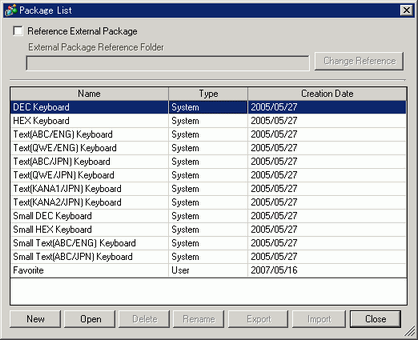

Displays the Package List registered in GP-Pro EX. You can register user-created parts, drawings, keypads, and so on. A combined 200 drawings, parts, and keypads can be registered in one [Package]. If a drawing or part is registered in multiple groups, it counts as one in the package count.
Reference External Package
Sets up references of external packages.
If enabled, lists registered packages and registered reference folder packages.
If the reference folder is not found, an error message appears and the list displays registered packages only.
External Package Reference Folder
Displays the location of the reference folder.
Change Reference
Displays a dialog box for changing reference to external packages.
Input the location of the folder directly or click [Browse] and select the folder from the [Browse folder] dialog box.
Package List
Displays a Package list.
Name
Displays the names of all the packages registered in a project file.
Type
Displays types of packages from among the following three types.
System: Registered packaged
User: Package created by users
External: External package
Creation Date
Displays the dates when the packages were registered.
New
Displays the [New Package] dialog box. Set a name of a new part, drawing, keypad, etc. to register in the package within 64 characters.
Open
Displays the [Package] window. You can register parts, drawings, and keypads by dragging them in from the drawing screen. You can drag and drop parts, drawings, and keypads registered in the [Package] onto the drawing screen.
You can also display the [Package] window from the [View (V)] menu. Point to [Work Space (W)] and then click [Package (K)] .
Delete
Deletes the parts, drawings, keypads, etc. previously registered in [Package].
Rename
Displays the [Rename Package] dialog box. Renames the parts, drawings, keypads, etc. previously registered in [Package]. Set a new name within 64 characters.
Export
Outputs packages created by users to the [External Package Reference Folder].
Import
Imports as user packages external packages selected from the list.
Close
Closes the [ Package List] dialog box.
