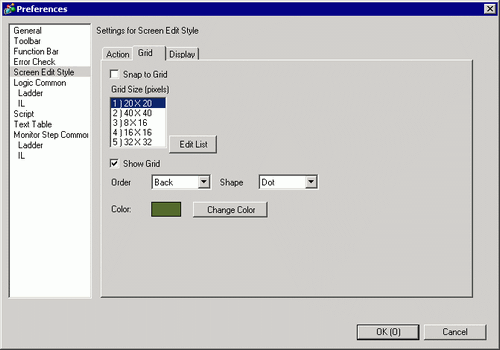

8.13.3.2 Preferences - Grid

Snap to Grid

The cursor position is determined from the grid size, you don't have to fine tune the position.

8.9 Creating a Screen from a Template

Grid Size (pixels)

Select the grid size from a list.

If the list does not have the desired size, display the [Edit Grid Size] dialog box and specify the width and height.

Show Grid

Designate whether or not to show a grid.

Select the display order from [Back] or [Front].

Select the shape from [Grid] or [Dot].

Display set colors. To change, click [Change Color] and select the color that you want to display from the color palette.
