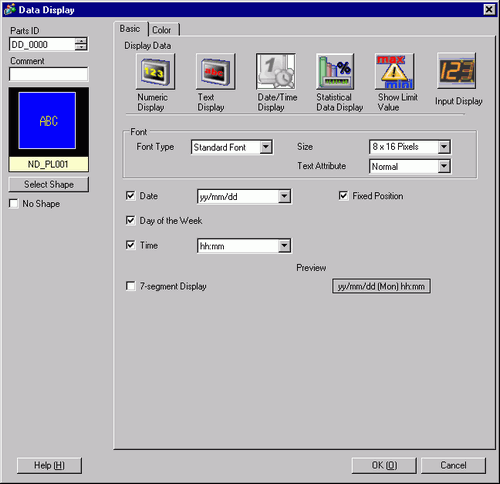

Displays the Date/Time.
Font
Set a font for the date/time.
Font Type
Choose a font type for the date/time from [Standard Font], [Stroke Font] or [ Image Font].
Stroke Font and Standard Font
Standard Font
The vertical and horizontal dimensions of a character can be specified in bitmap font. When you magnify/shrink characters, the outline may become rough or the letter may appear compressed.
Stroke Font
This is an outline font where the ratio of the character height/width is fixed. The letters will have a smooth outline even if you magnify/shrink them. However, this font uses more disk space on the display unit.
Size
Choose a font size for the date/time.
Standard Font
(8 to 64)×(8 to 128)
Standard Font (Fixed Size)
Choose from [6x10], [8x13], or [13x23] (Displays single-byte characters only)
Stroke Font
6 to 127
Text Attributes
Select the text attributes.
Standard Font
Choose from [Standard], [Bold], [Shadow] (When using the fixed font size [6x10], select either [Standard] or [Shadow].)
Stroke Font
Choose from [Standard], [Bold], [Outline]
This setting is unavailable for [7-segment Display].
Image Font
Window font will be converted to bitmap images and displayed on a display unit.
When Image Font is selected, text for the Date/Time Display is automatically registered. Once registered, you can check the content in the [Select Font] field.
A proportional font cannot be selected in the Date/Time Display.
Select Font
The [Image Font] dialog box appears. Select the font, style, and size, and Character Set.
Date
Set whether to display the date, and select the display format from [yy/mm/dd], [dd/mm/yy], [mm/dd/yy], [20yy/mm/dd], [dd/mm/20yy], or [mm/dd/20yy].
When working with a double-byte character language and you select a display format that includes the year, month or date, values display in double-byte characters. However, if you select [7-segment Display], those same values display in single-byte characters.
Day of the Week
Select whether to display the day.
Time
Specify whether to display the time and select the time format from [hh:mm] or [hh:mm:ss].
When working with a double-byte character language and you select a display format that includes hours, minutes, or seconds, values display in double-byte characters. However, if you select [7-segment Display], those same values display in single-byte characters.
Fixed Position
Select this option to display the numeric value in the center of the part.
7-segment Display
Select this option to show values as a 7-segment display.
This cannot be set when [Image Font] is selected.
This cannot be set when [Size] is [Fixed Size].
This can be set only when [Text Attribute] is selected as [Standard].
Preview
Displays the data image according to the settings.
