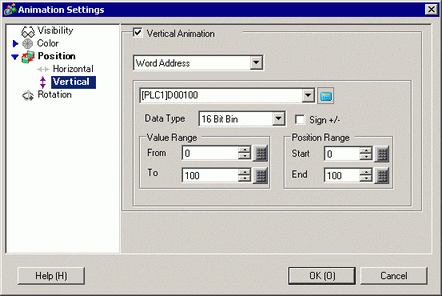

Set up animation that moves objects vertically relative to a defined value.
Vertical Animation
Word Address
Data Type
Select the [Data Type]. Select [16 Bit Bin], [16 Bit BCD], [32 Bit Bin], or [32 Bit BCD].
Sign +/-
Defines negative number support for display data. Set up when you want to display negative values. Negative values are handled using 2's Complement.
This is available when the [Data Type] is [16 Bit Bin] or [32 Bit Bin].
Value Range
Set up the range of values on the address. This corresponds to the [Position Range]'s [Start] and [End] values.
From
Specifies the start point from which it will move.
To
Specifies the end point. The object does not move any farther.
Position Range
Sets up the range of movement for the object (as an offset from the original object location).
Start
Defines the start point for object movement.
This value is an offset from the original object coordinate.
End
Defines the end point for object movement.
This value is an offset from the original object coordinate.
Numeric Expression
Click [
] to display the [Numeric Expression] dialog box. Set the details of the expression.
Value Range
Set up the range of values on the address. This corresponds to the [Position Range]'s [Start] and [End] values.
From
Specifies the start point from which it will move.
To
Specifies the end point. The object does not move any farther.
Position Range
Sets up the range of movement for the object (as an offset from the original object location).
Start
Defines the start point for object movement.
This value is an offset from the original object coordinate.
End
Defines the end point for object movement.
This value is an offset from the original object coordinate.
Expression
Define the expression. You cannot type the expression.
Click inside the expression to select and define that portion.
Type
Select the type of conditional expression: [Word Address] or [Constant].
Word Address
Sets up word addresses in the expression.
Constant
Enter the values that define how much to move between 0 and 4294967295.
Data Type
Select the data type. If you set [Type] = [Word Address], select [16 Bit Bin], [16 Bit BCD], [32 Bit Bin] or [32 Bit BCD]. If you set [Type] = [Constant], select [Dec], [Hex] or [Octal].
Sign +/-
Defines negative number support for display data. Set up when you want to display negative values. Negative values are handled using 2's Complement.
This is available when the [Data Type] is [16 Bit Bin] or [32 Bit Bin].
Operator
Set up an operator.+, -, /, Select *, &, |, ^, %, <<, or >>.
Unary Op.
Set up an Unary operator. ~ or None is available.
Address/Constant
Set up an address.
Expand
Enlarges the script Expression area.
Removes parentheses set up with
.
Adds parentheses around the selected portion of the expression.
Moves the selected portion to the left side of the operator.
Moves the selected portion to the right side of the operator.
Select Expression
Selects the entire expression.
Add Comparison
Adds a condition to the expression.
Copy
Copies and adds the selected expression.
The expression cannot be copied when using a comparison operator.
Add
Adds a part of the expression. Please enter the address manually.
Delete
Removes a portion of the expression. You cannot select and delete the entire expression.
