20.3.1 Procedure - Showing and Hiding Objects

Display a hidden switch by turning ON bit M100.

1. Select the switch you want to show or hide. From the [Edit (E)] menu select [Animation (N)], or right-click the object and select [Animation (N)].



   • The animation settings screen can also be displayed as follows.

   • Select a drawing, then in the [Properties (P)] window select [Animation], and click the ellipsis [...].


   • In the [Screen Data List], double-click the [Animation] column of the part you want to edit.

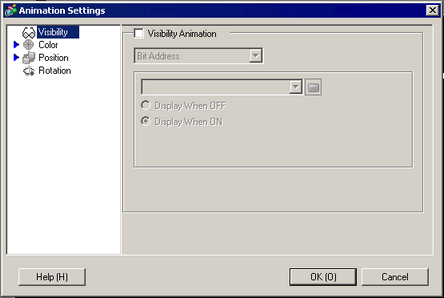

2. The [Animation Settings] dialog box appears. On the left pane, select [Visibility Animation].


3. Select the [Visibility Animation] check box.

4. Select [Bit Address] and enter the address used to run the visibility operation.
