20.1.1 About Animation

Animation is a feature that enables you to temporarily hide or change the colors and positions of parts and drawings (objects). This feature allows you to highlight specific objects, enhance security, and create movement on the screen.

You can set up the following animation with GP-Pro EX.

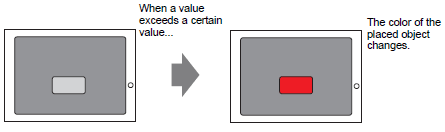

Show/Hide Objects

You can hide screen drawings and make them appear, as needed. You can use this as a security feature to hide objects that only specific users can operate.

For example:

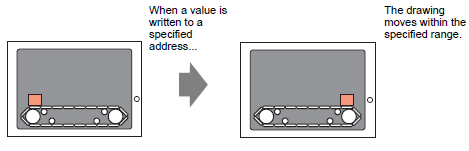

Change the Position of the Drawing

By moving the drawing, changes in actual situations can be displayed on the screen.

For example:

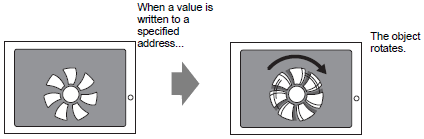

Rotate an Object

By rotating objects, you can show the rotation of equipment such as a fan or motor, as well as the movement of a needle in a meter, to follow actual changes in value.

For example:

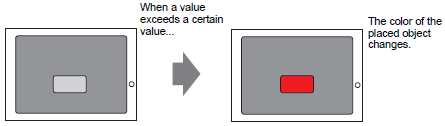

Change Object Colors

You can change object colors at defined times. This is useful when, for example, you want to highlight the display by changing its color when it exceeds a certain value.

For example:
