20.11.1 Numeric Expression

Setting Example
Horizontal Animation
Position determined by the total of D100+D200 (16 Bit Bin), multiplied by 10

1. Select the object to move then from the [Edit (E)] menu click [Animation (N)], or right-click the object and select [Animation (N)].

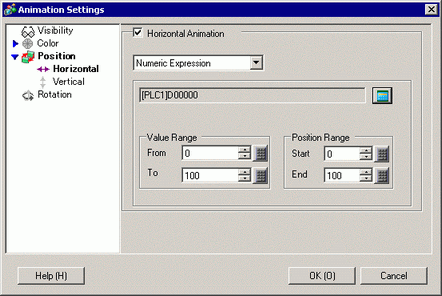

2. The [Animation Settings] dialog box appears. On the left pane, expand [Position] and select [Horizontal].


3. Select the [Horizontal Animation] check box. Select [Numeric Expression].
   Click [] to display the [Numeric Expression] dialog box.

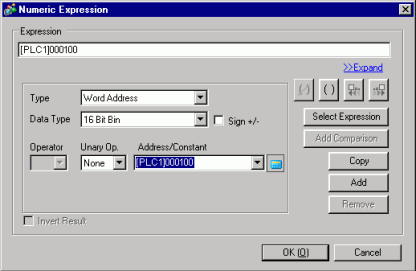

4. Select the expression, then set [Address] to D100.


5. When you click [Add], another component is added to the expression.

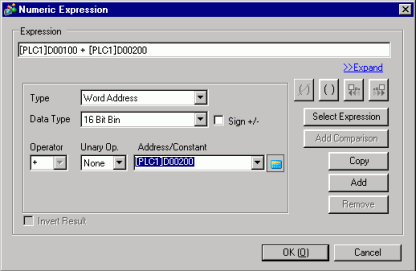

   Set its [Address] to D200.

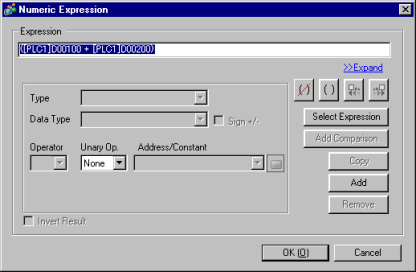

6. Using the mouse, select the entire expression and click .

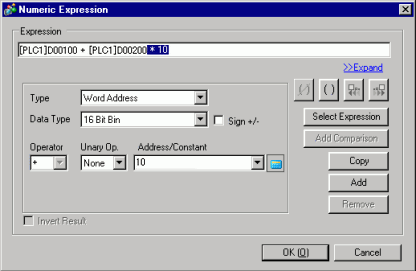

7. Click [Add]. Select the added expression component and set up the following.
   Type: Constant
   Data Type: Dec
   Operator:*
   Address 10


8. Click [OK].
