20.11.2 Bool Expression

Setting Example:
Visibility animation displays object when D100>D200

1. Select the object you want to show or hide. From the [Edit (E)] menu select [Animation (N)], or right-click the object and select [Animation (N)].

2. The [Animation Settings] dialog box appears. On the left pane, select [Visibility Animation].

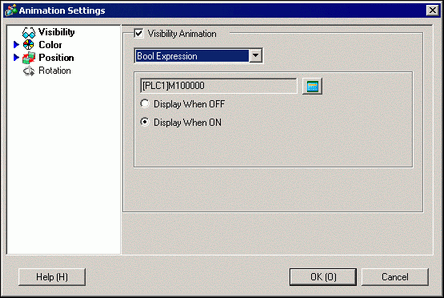

3. Select the [Visibility Animation] check box.
   Select [Bool Expression] and the [Display When ON] option.


4. Click [] to display the [Bool Expression] dialog box.

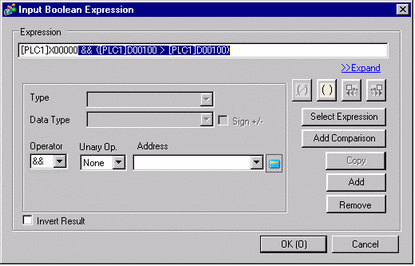

5. Select the expression and click [Add Comparison].


6. Select the unnecessary portion ([PLC1]X0000) and click [Remove].

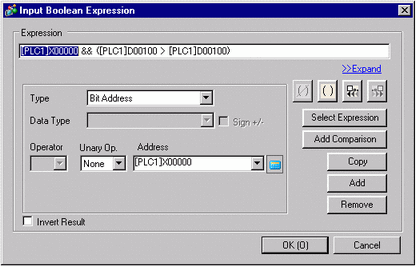

7. Select the address on the left side of the expression and change its [Address] to D100.

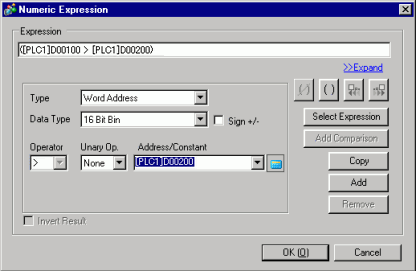

   Similarly, select the address on the right side of the expression and change its [Address] to D200. Also set the [Operator] to >.


8. Click OK.
