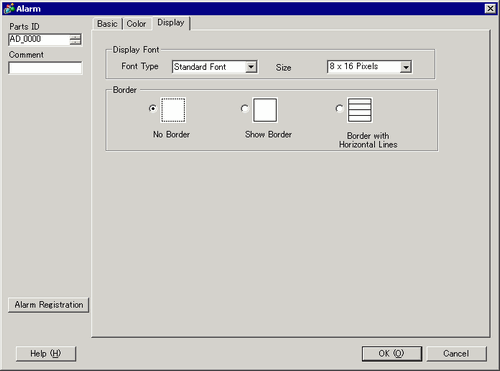

Set a font and border for the Alarm Message.
Display Font
Set a font for the text.
Direct Text/Text Table
Set whether to input directly for item names or to reference text registered in a Text Table.
Direct Text
Directly input the item name to be displayed.
Text Table
Use an Item Name registered in a Text Table.
17.13.3 Alarm Part - Item/Extended (Text Table)
Font Type
Choose a font type for text from [Standard Font], [Stroke Font], or [Image Font].
Standard Font/Stroke Font
Standard Font
This bitmap font displays quickly, because it is composed of dots.
Stroke Font
This vector font maintains its shape when enlarged, because its framework is described with lines.
Size
Choose a font size for the Alarm Message.
Standard Font
Specify "Width x Height" between [8 x 8] to [64 x 128] in 8 pixel units, or select a fixed size from [6 x 10], [8 x 13], [13 x 23]. When using fixed sizes, you can display only single-byte alphanumeric characters.
Stroke Font
6 to 127
Image Font
Windows fonts are converted to bitmap images for use on the display unit.
You cannot select a proportional font in the [Alarm Summary] [Display] settings.
Select Font
The [Image Font] dialog box appears. Select the font, style, and size, and Character Set.
Only fonts installed on Windows can be selected. The [Style], [Size], and [Character Set] setup differs depending on the font type.
Border
Choose the Alarm Message border from [No Border], [Show Border], or [Show Border + Horizontal Ruled Line].
The color of the border and ruled line is fixed to white.
