The following shows how to set security levels on screens.
23.3 Limiting
Screen Access by Authority For details on password settings, see the following.
23.10.1 Common
Settings (Security Settings) Settings Guide
Password setting data in CSV format can be created by exporting the password setting of GP-Pro EX in CSV format.
The following shows
how to set security levels on screens.
23.3 Limiting
Screen Access by Authority
For details on password
settings, see the following.
23.10.1 Common
Settings (Security Settings) Settings Guide
Create [Password] and [ID] on the
password setting screen, and then click [Export].
The [Export Passwords] dialog box
appears. Specify the [Destination Folder], and click [Run].
Click [Browse] to specify the destination folder on the displayed screen.
The [SECURITY] folder is created in the specified location, and the password setting data with the file name "security.csv" is exported in CSV format.
To copy output data to external storage, copy the folder with the generated data, and paste to the external storage root folder.

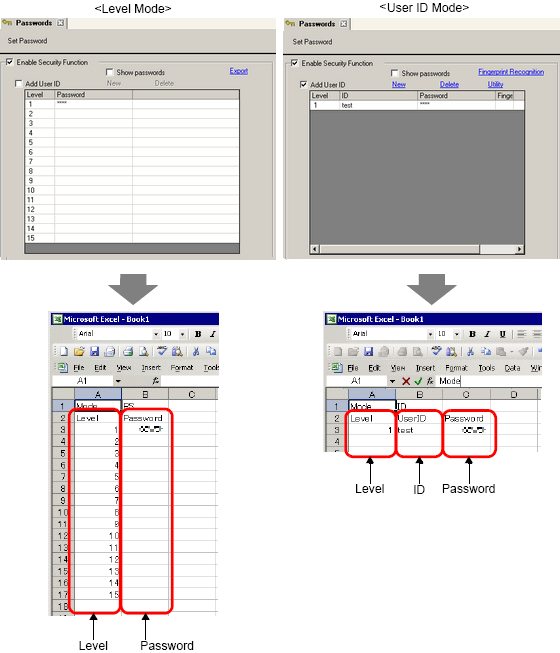

Output data differs
depending on the [Add User ID] settings' "Level Mode"
or "User ID Mode".
23.11 Password/User
ID Input Window
You can also change [Password] and [User ID] on the output "security.csv".
