12.2.1 Procedure - Creating Windows

Create a new Window Screen.

1. From the [Screen (S)] menu, select [New Screen (N)] or click .

2. The [New Screen] dialog box appears. From [Screens of Type], select [Window Screens]. The [Screen] number field is filled in starting from 1. You can change this number, but it cannot be duplicated.



   • By selecting the [Disable touch outside windows] check box, touch operations outside the top window are ignored which can prevent mistakes.
     3.8.6.1 Screen - New Screen

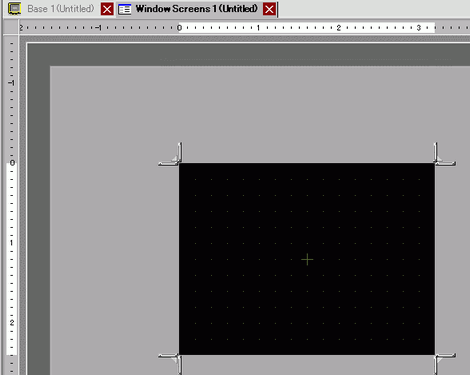

3. Click [New]. The window appears.


4. Adjust the window size.

   Hover over a corner, the cursor changes to . Drag to change the size.







   • Ensure that the Window does not exceed the size of the Base Screen.

5. Create screen. You can use the same steps as creating a base screen.
   Save the project to complete the window. From the [Screen (S)] menu select [Close Screen (C)], or click to close the Window.
