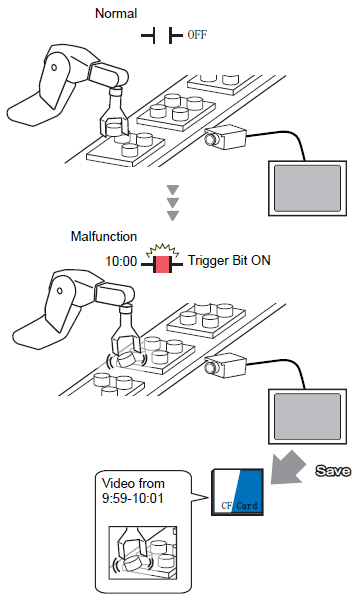

The AGP-3360T/3450T/3550T/3560T/3650T/3750T saves a movie file of the video signal before and after a malfunction has occurred when the defined Trigger Condition is true.
This feature captures the malfunction on the assembly line, which is useful in investigating the cause.
When the trigger bit address is turned ON during monitoring, up to 60 seconds of video before and after the event (total of 2 minutes) is saved as a movie file to external storage or an FTP server.
28.4.1 Procedure - Recording Video Before and After a Malfunction
