5.5.3 Common - Backlight Color Settings

This feature switches the backlight to red. It is useful when creating warning signals.

This feature is available for supported models.
1.5 Supported Features
When the backlight changes to Red, a screen display stays on even when the Standby Mode is set to [Screen OFF].
5.4.2.1 Display Unit [Display] - Screen Settings

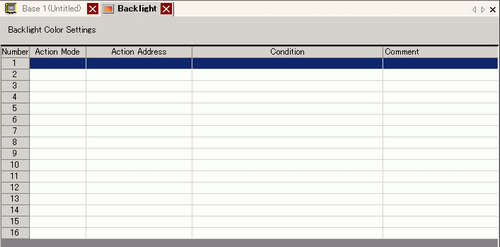

Action Mode, Action Address, Condition, Comment

Double-click the line to display the [Backlight Color Settings] settings dialog box. The selected settings are shown in the box.

Action Mode

Select either [Bit Action] or [Word Action].

Comment

Enter your comment using up to 20 characters.

Change condition to red

Configure the conditions for switching the backlight to red.

When you select [Bit Action] for [Action Mode]

Specifies whether to switch the color to red upon the specified [Bit Address] turning ON or OFF.

When you select [Word Action] for [Action Mode]

Displays in red when storing a value greater than the [Upper Limit] or less than the [Lower Limit]. The setting range between [Upper Limit] and [Lower Limit] is 0 to 65535.
