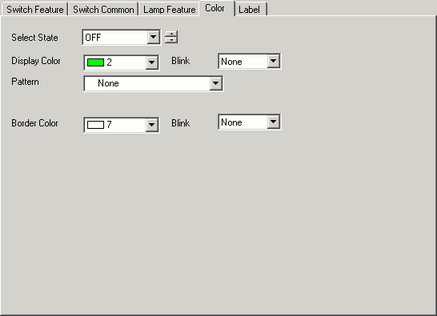

Select State
Select the state.
If the Lamp Feature is not used, only [Normal] can be selected.
If the Lamp Feature is used, set the Switch color corresponding to the state.
To set a color that is interlocked or in delay, click the [Switch Common] tab's [Extended], then select the [Show Interlocked Condition] or [Show In-Delay Status] check box. This will add the [Select State] choice.
Display Color
Select the Switch color.
Pattern
Select the pattern from among 9 types.
Pattern Color
Select the pattern color.
The Switch color appears as a combination of the [Display Color] and [Pattern Color].
Border Color
Select a border color for the Switch.
Blink
Select the Part blink and blink speed. You can choose different blink settings for the [Display Color], [Pattern Color], and [Border Color].
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
1.6 Supported Colors
Color
Select the Switch color. The display will show a different colored image as the selected part image.
Depending on the shape, you may not be able to set the [Display Color], [Pattern Color], [Border Color], [Color], and so on.
