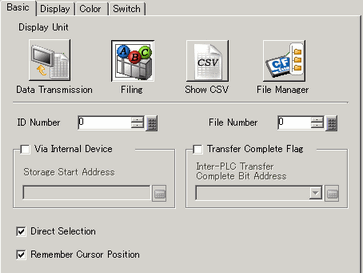

ID Number
An ID number related to the [Filing] Display and a Switch Lamp [Special Switch] [File Item Switch]. The value can be between 0 and 255.
When placing two or more [Filing] Displays on one screen, ensure that this number is unique.
File Number
Designate the filing data number to display in the [Filing] Display from 0 to 2047.
Via Internal Device
Set to transfer via the internal device when transferring filing data. By temporarily storing filing data in the internal device, you can use a Data Display to view and edit data on the screen.
26.17.4 Manual Transfer Via Internal Device
While filing data is transferred between backup memory (SRAM) and the internal device, the internal device Special Relay Area LS2032 bit 11 is turned ON.
Storage Start Address
When [Via Internal Device] is set, select a start address for data stored there.
Transfer Complete Flag
Set to confirm that transfer backup memory (SRAM) to device/PLC is complete with a designated bit.
Inter-PLC Transfer Complete Bit Address
Set the bit address to confirm that transfer is complete.
If data transmission cannot be performed, this bit stays OFF, and the internal device Special Relay Area LS2032 bit 10 turns ON.
Direct Selection
To select data to transfer, touch displayed item names. Or, use the up/down cursor switches to select item names.
Remember Cursor Position
Set to save the current cursor position when a screen change occurs.
