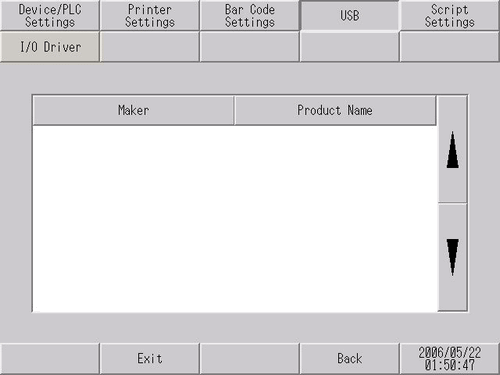

Displays information (manufacturer and product name) about the USB device connected to the display unit.
Maker
Displays the manufacturer name of the USB device connected to the display unit.
Product Name
Displays the product name of the USB device connected to the display unit.
Several USB devices of the same category in the following table cannot be simultaneously used. Even if multiple USB devices of the same category are connected to the display unit, only the first USB device recognized by the display unit can be used. Note that WinGP may use multiple USB devices. For details, refer to the notes about each category.
|
Category |
USB device |
|
1 |
Printer, USB-PIO converter*1 |
|
2 |
Keyboard, Numeric keys, Barcode reader*1 |
|
3 |
Mouse*1 |
|
4 |
USB storage (USB memory, CF/SD card reader, and so on)*2 |
|
5 |
USB transfer cable |
|
6 |
USB-Serial (RS-232C) adapter cable, USB/RS-422/485 conversion adapter*3 |
|
7 |
EZ Tower Light*4 |
|
8 |
EZ Fingerprint Recognition Unit*5 |
|
9 |
EZ Illuminated Switch*4 |
|
10 |
EZ Numpad*4 |
|
11 |
EZ LAN Adapter*3 |
*1 When using WinGP, it is possible to connect multiple USB devices. Each USB device operates according to the Windows operating specifications.
*2 When using WinGP, it is possible to connect multiple USB devices. The USB device specified in the project is used.
*3 Cannot use with WinGP
*4 When using WinGP, it is not possible to use multiple USB devices. The USB device that is connected first is used.
*5 When using WinGP, it is not possible to use multiple USB devices. The USB device that is connected last is used.
